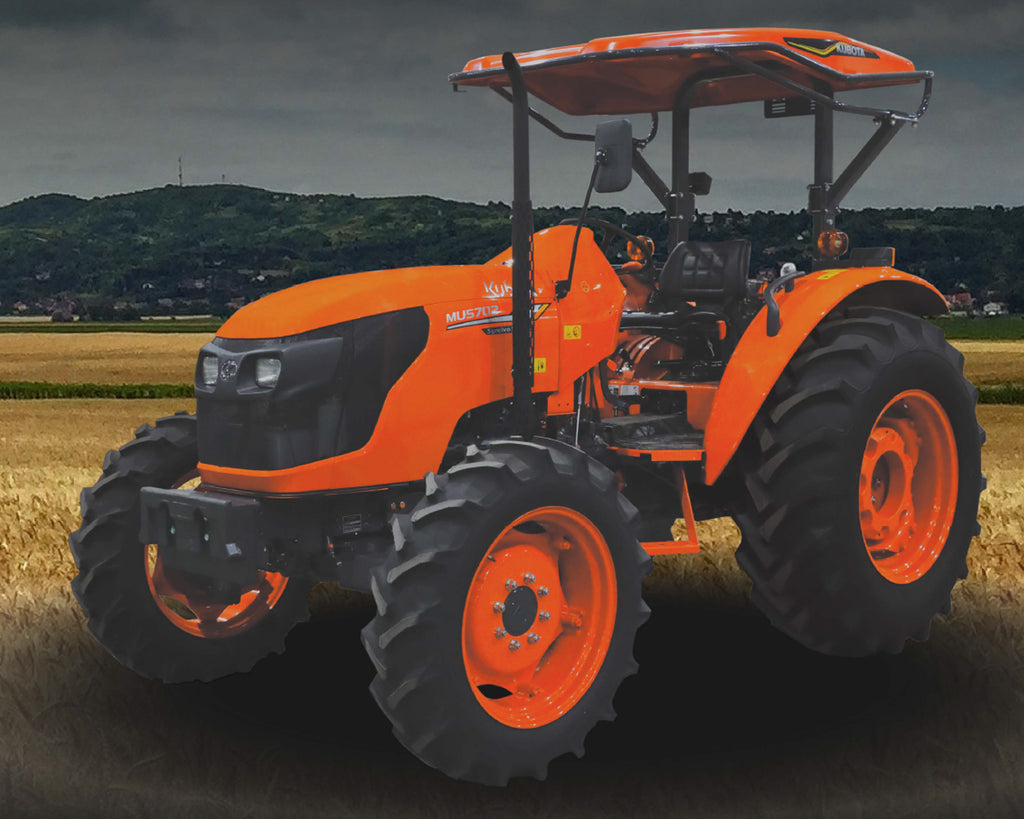

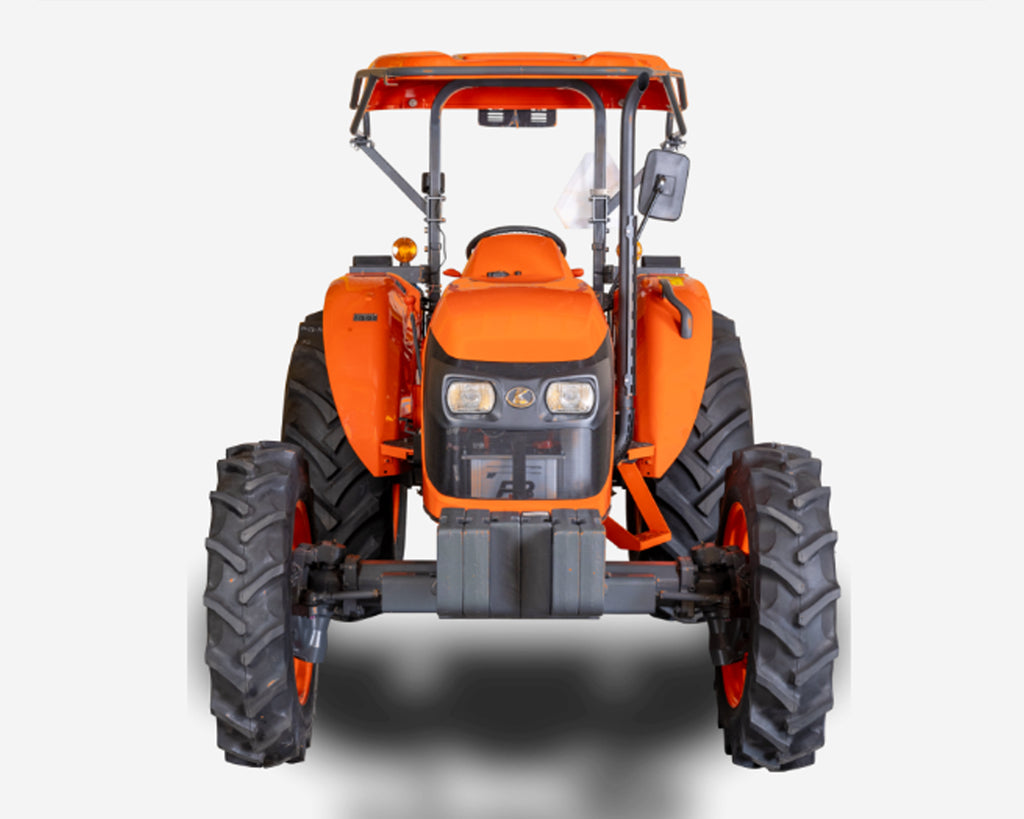

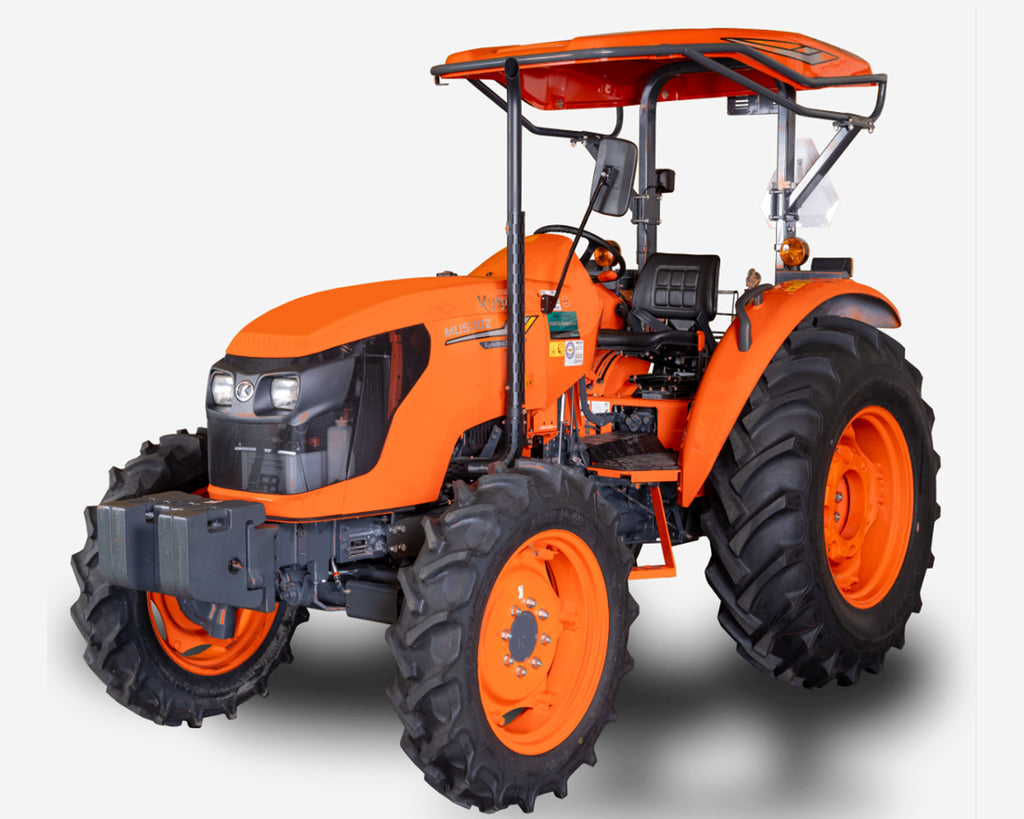

KUBOTA TRACTOR MU5702-PH
₱0.00
Engine
| Model | V2403-M-DI-T | ||
| Type | Direct injection, with turbocharger, water-cooled 4-cycle diesel | ||
| No. of cylinder | 4 | ||
| Bore and stroke | mm | 87 x 102.4 | |
| Total displacement | L | 2.434 | |
| Engine gross power* | kW (HP / PS) | 42.6 (57.1) | |
| Engine net power* | kW (HP / PS) | 40.7 (54.5) | |
| Power Drive Shaft (PTO Shaft)* | kW (HP / PS) | 36.4 (48.9) | |
| Rated revolution | rpm | 2400 | |
| Maximum torque | N-m | 213.8 | |
| Battery | V | 12V 55Ah | |
| Fuel | Diesel Fuel | ||
| Fuel tank | L | 65 | |
| Engine crankcase (with filter) | L | 7.6 | |
| Engine coolant | L | 9 | |
| Transmission case | L | 46 | |
| Tire | Front | 9.50-24 | |
| Rear | 16.9-28 | ||
| Steering | Hydrostatic power steering | ||
| Transmission | Gear shift, 8 forward and 8 reverse | ||
| Brake | Mechanical, Wet disk type | ||
| Min. turning radius (with brake) | m | 3 | |
| Clutch | Dry type | ||
